OMS® v5.0.1 LPWAN Splitting Mode UL-S1 for End Devices

Single Stack

End Device

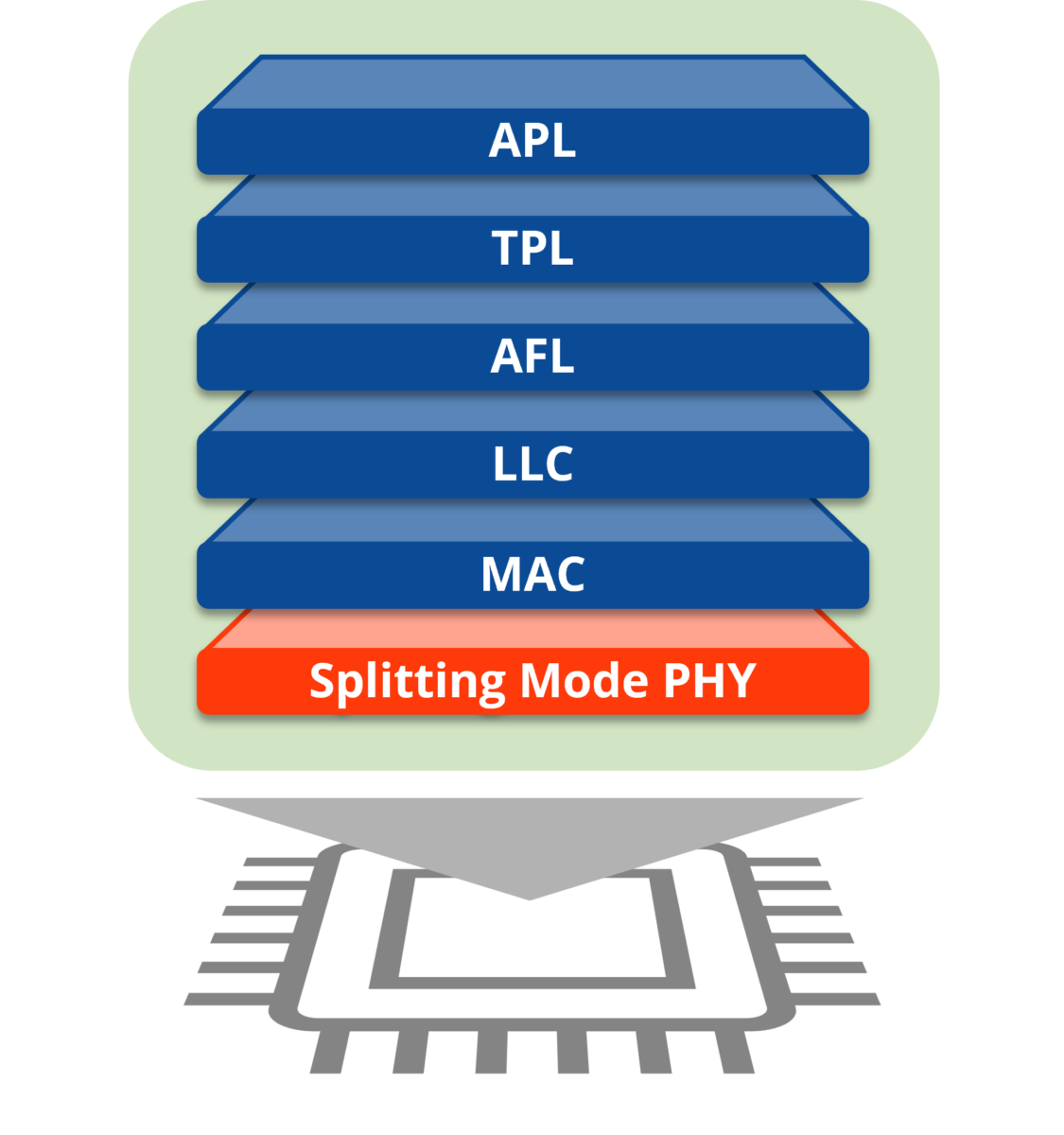

Graphic of the Protocol stack architecture showing the different layers of the stack.

Compliant to EN 13757 and OMS® Specification, implementing Gen. 5 Annex Q “OMS® LPWAN”

Excellent robustness due to the implementation of the telegram splitting technology

Significantly higher range of the new OMS® generation compared to OMS® v4 - thanks to splitting mode.

Pre-certification on reference hardware platform

Test your preferred protocol stack for free with an evaluation license

  • Register a business account
Click “Sign in” in the license selection to start the registration process.
  • Select product
Once your account is approved, choose your desired product and click “Start your free trial”.
  • Sign the agreement
Digitally sign the evaluation agreement for your selected product.
  • Download & start testing
After signing, you can download the software package and start your evaluation.
Product description
Features
Hardware
Technical Information
Benefits
FAQ

OMS® v5.0.1 LPWAN Splitting Mode UL-S1 for End Devices

OMS® v5 – the new generation of the OMS® Stack is making its way into the metering world. With this generation you get a powerful product that merges the OMS® Specification with the Physical Layer of the mioty® LPWAN technology, specified according to TS-UNB – ETSI TS 103357.

This stack is characterized by:

  • excellent robustness thanks to the integration of telegram splitting technology
  • a significantly greater range than previous OMS® versions.

With the new OMS® generation, you can offer your customers high-performance products with the option of expanding their fields of application in their existing OMS® networks.

Please Note: We do not currently offer an evaluation version for this stack.

Protocol Stack Features

OMS® v5.0.1

Unidirectional transmission [UL-S1] – asynchronous mode

  • OMS® security profiles A & B (security mode 5 & 7)
  • TPL header (short and long), according to EN13757-7
    • Short header (CI-field 0x7A)
    • Long header, with ALA (CI-field 0x72)
  • AFL header according to EN13757-7
    • Message counter
    • 8-Byte CMAC
  • LLC header, according to OMS® v5.0.1 Annex Q
    • LC[0]-field: ANP, TAP, ULP
    • C-field: SND-NR
    • M-field, A-field (for transmitter address)
    • Access number
  • MAC header, according to OMS® v5.0.1 Annex Q
    • MHCTL[0] (0x00)
    • 4-Byte MAC CRC

Physical parameters [UL-S1] are according to Telegram Splitting Ultra Narrow Band (TS-UNB) profile EU0

Available for the following hardware platforms

STMicroelectronics/Semtech

STM32L0+SX127X

Technical Information

Supported Specifications

OMS® v5.0.1 Protocol Stack compliant according

  • EN 13757 and OMS®-Specification, implementing Gen. 5
    Annex Q “OMS® LPWAN”
  • TS-UNB – ETSI TS 103357
  • STMicroelectronics/Semtech: STM32L072CZ + SX1276
    verified on B-L072Z-LRWAN1

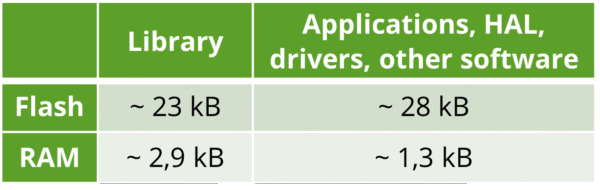

Table showing typical memory requiremants of the OMS v5.0.1 LPWAN UL-S1 stack on reference hardware.

  • Already included 400 bytes RAM to typical stack library due to dynamic memory allocation (_RAM).

The code sizes described above specify the typical required memory for operating the full featured protocol stack as a library including related drivers. Values based on reference hardware STM32L072CZ + SX1276.

Your benefits with our Protocol Stack Package

Device interoperability

The OMS® v5 stack generation enables a high degree of device interoperability

Combination of two worlds

Combination of the interoperability of OMS® applications and the great robustness and range of mioty®

Short time-to-market

With a directly available OMS® v5.0.1 Standard Stack you shorten your time-to-market significantly

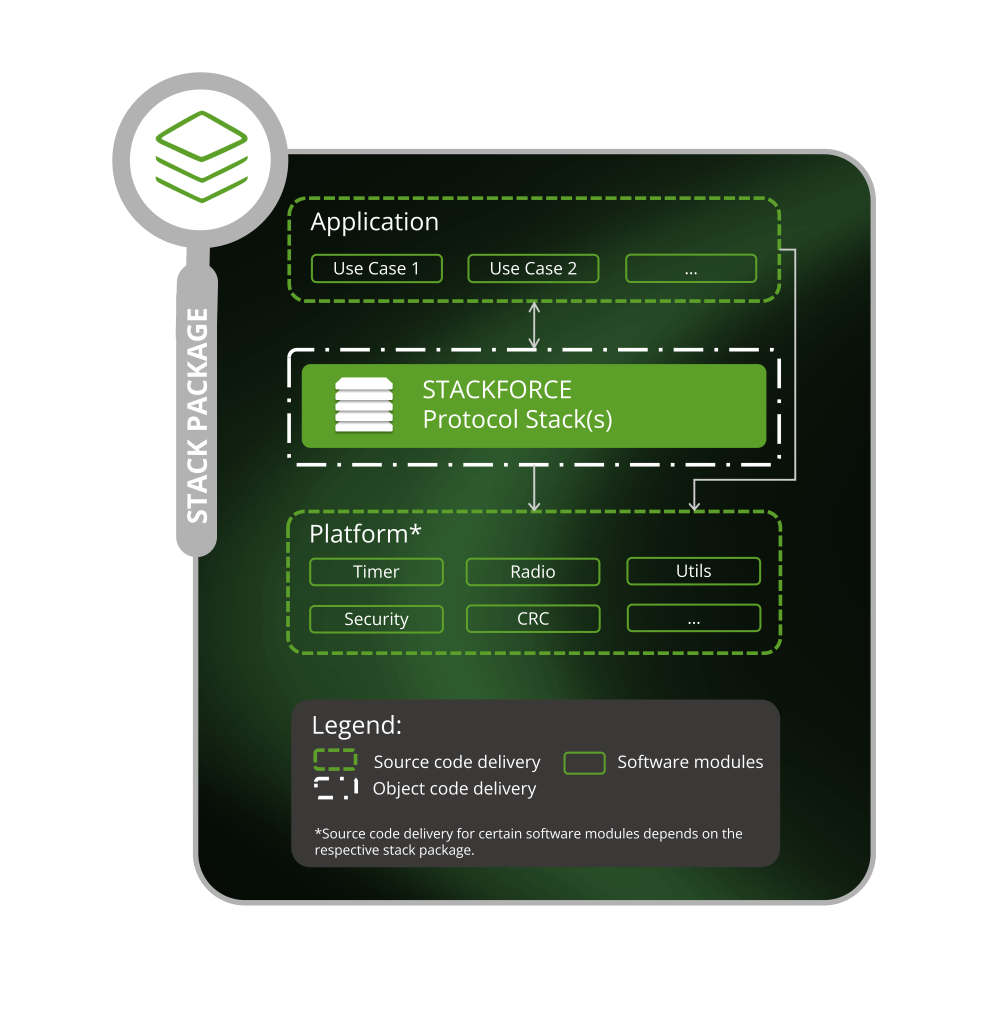

Graphic showing the detailed parts of the protocol stack package of STACKFORCE

Frequently asked Questions

What is included in the STACKFORCE software package?

Our Protocol Stack package includes everything you need for integration:

  • Precompiled stack library
  • Hardware-specific drivers
  • Serial interface (UART, SPI, etc.)
  • Power management
  • Example applications for quick integration
  • Documentation

The Protocol Stack itself is delivered as object code and cannot be directly modified. The platform interface (including HAL and RF driver integration) is provided as source code. This allows you to:

  • Adapt the platform driver to your target hardware
  • Configure specific radio settings such as frequencies
  • Optimize driver behavior
  • Add your own components such as security and timers

For further adjustments to the stack itself, we are happy to support you with specific development services.

Yes, that’s possible. In addition to our standard solutions, we offer customer-specific extensions of our Protocol Stacks. This enables us to implement your specific requirements so that the stack integrates seamlessly into your system environment.

We are happy to check compatibility with your specific hardware. If your hardware meets the minimum requirements for running a Protocol Stack, porting is generally possible. We can discuss the porting effort with you or provide our Platform Porting Guide so you can perform the porting yourself.

Yes. You can request a free evaluation license and test the software in your target environment – without obligation and risk-free. More information about the evaluation offer can be found on our website under: Evaluation License.

STACKFORCE uses a multi-stage testing process to ensure high software quality. This includes:

  • Unit, module, and firmware tests to check the functionality and stability of individual components
  • Static code analysis to detect errors and vulnerabilities at an early stage
  • Automated system tests on simulated and real hardware
  • Regression tests to ensure that existing functions continue to work reliably and that no new errors are introduced
